Stone ATC CNC Center
Your Professional Stone ATC CNC Center Supplier
Jinan Lingdiao Machinery Equipment Co.,Ltd is located in the Jinan ,Shandong,China. As a global supplier in the cnc machine, our company is famous around all over the world with LD Brand,LD Company is to create added value for customers around the world.
lso has become one of the leading suppliers in the cnc machine industry in world.The Products mainly as follows:
Marble&stone cnc router machine,wood cnc router machine,advertisement cnc router machine,ATC cnc router machine,plasma metal cutting machine,co2 laser engraving&cutting machine,fiber laser marking machine,fiber metal cutting machine etc.
Why Choose us
Support Customization
Owns more than 500 square meters of researching and office space, more than 5000 square meters factory, and supply OEM service for more than 30 manufactures.
Our Certificates
All machines passed the European CE authentication, American FDA certificate and are certified to ISO 9001.
Broad Market
We have customers from both domestic market and oversea market. Our main sales market: North America 20.00% , Mid East 18% ,Eastern Europe 12.00% , Western Europe 10% , South America 10% , Africa 6% ,Southeast Asia 4% , Eastern Asia 5% .
Types of Stone ATC CNC Center
The stone ATC CNC center produced by our company mainly include the following types:

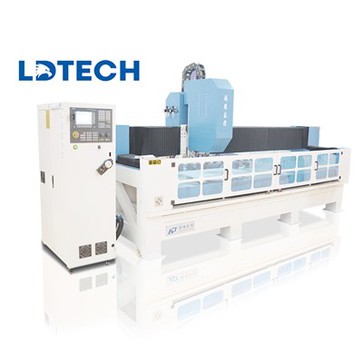

LD-3015 Stone Cutting ATC CNC Router
ATC cnc router application stone material: natural marble, granite, artificial stone, tombstones, stone, jade carving and processing. Decoration categories: ceramics, crystal, glass, plastic, chemical synthetic organic glass board, PVC board, wood, plastic, metal, plastic materials, such as line carve, 2d, 3d bottom tip carving, 3d relief, cutting, edge, drilling.
LD-3620 Professional Stone Countertops Processing Machine
Widely used in granite quartz and marble stone countertops. Curved shaped edge on basin，bar counter，countertops.

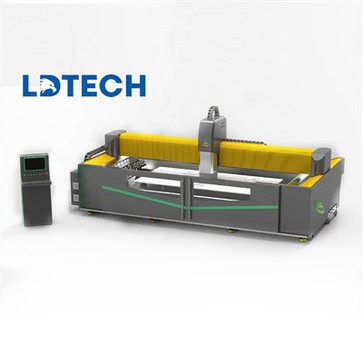

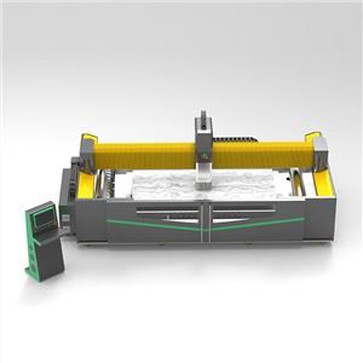

LD-3316 Stone ATC Cutting Polishing Machine ATC
Imported straight square guide rail, high precision helical rack, double row and four row ball slider, large load bearing redundancy, stable operation, high precision, long life.Long time use of deformation, so that the positioning accuracy is more accurate, the load-bearing force of the machine can reach.
LD-2813 Quartz 2-Process Countertop CNC Router Center
Quartz stone countertop processing center is a stone countertop processing equipment that integrates edging, polishing, drilling, groove milling, and special-shaped cutting.
LD-3220 Cutting Polishing CNC Quartz Stone Processing Machine
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution.
5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .
LD- 3010 Kitchen Countertop Quartz CNC Router Center CNC Machine
Suitable for cabinets artificial stone, quartz stone countertops and sink, tea tray carving, European style edging, and other heterosexual stone, ceramics, glass and ceramic stone drilling, sanding, edge down, carving. 2D and 3D applications including kitchen tops, shower plates, tombstones, bas-reliefs, grooving and lettering.
Specification
|
Items |
Parameters |
|
X Y Z Axis working area |
3000*1500*400mm |
|
Table size |
2310*3550mm |
|
Positioning accuracy |
±0.03/300mm |
|
Reposition positioning accuracy |
±0.03/300mm |
|
Machine Frame |
8/10mm Steel tube welded structure |
|
Drive system X,Y axis |
30 Taiwan HIWIN guide rail&pinion |
|
Drive system Z axis |
Ball screw |
|
Max power consumption |
20-28.0KW |
|
Max traverse speed |
25000mm/min |
|
Max working speed |
15000mm/min |
|
Spindle |
7.5KW Mechanical Constant Water Spindle |
|
Spindle speed |
25000rmp |
|
work mode |
Germany Siemens Servo motor and driver |
|
Working voltage |
AC380V |
|
Command language |
CAD |
|
Interface |
CF card, Ethernet |
|
Operating system |
Siemens Control System |
|
X-Y resolution |
0.03/300mm |
|
Software |
Artcam,Type3,UcancamV9 |
Benefits of Stone ATC CNC Center
LD-3015 Stone Cutting ATC CNC Router
LD-3015 stone cutting ATC CNC router have many advantages, including:
● Precision and Efficiency
ATC CNC routers can cut stone with high precision and speed, significantly reducing production time.
● Versatility
These machines can handle a wide range of designs, from simple cuts to intricate details, offering incredible versatility.
● Safety
ATC CNC routers are safer than manual cutting methods, as the cutting is entirely machine-operated, reducing the risk of accidents, always follow the correct training and guidance from your machinery supplier and adhere to local safety laws.
LD-3620 Professional Stone Countertops Processing Machine
LD-3620 professional stone countertops processing machine have many advantages, including:
● Automatic Tool Change System
Linear type automatic tool change system finishes the entire machining process from drilling, cutting, milling, forming, and polishing at one time. Fully realizing high automation.
● High-Precision Ball Screws And Guide Rails
All ball screws and guide rails are provided by well-known Germany manufacturers. X/Y axis adopts a special oil-immersed lubrication method. Equipped with an effective waterproof and dustproof structure, it ensures high precision of processing and maximizes the service life of the ball screw and guide rail.
● Strong Welded Working Table Without Deformation And Rust
Bottom of the working table is made of steel plate, and above this is aluminum. The integral structure is very stable and will never rust.
LD-1308 Marble Sink Cutting Machines
LD-1308 marble sink cutting machines have many advantages, including:
● Steel welded bed,with good rigidity and high precision.
The overall casting structure,providing a stable working platform,the machine vibration is minimal,low noise.Smooth and stable high-speed engraving movement,largely depends on the mechanical structure of the machine: three axis high-precision sports units;Taiwan imported linear guide rail,and stepper or servo motors and drivers,all of these main parts ensures the cnc marble engraver can work at high speed and good accuracy.
● High precision,high speed,low noise spindle motor
LD-1308 marble sink cutting machines mainly use the stone router tools to engrave,and raise high requirement to the spindle motor accuracy and speed.
● Fine drivers technology
Motor driver is plays an important parts during the processing.Normally the drivers are the supplementary parts of motors,good drivers can guarantee high control precision,high running speed and greatly improve the average speed of movement.
After-Sales Service
Machine User Manual/Operation Video will be send with machine together.
Machine spare parts can be freely change within warranty.
Machine operation and other problem can be solved by Skype, Whatsapp face to face video.
24 Hours Online Service Team with professional technology.
If necessary,can arrange for engineers to provide after sales service.
Certificate
FAQ
We're one of the professional stone atc cnc center manufacturers and suppliers in China. Please feel free to contact our factory to get quality stone atc cnc center for sale or check price with us.
