Mold/Pattern Making Machine
Your Professional MoldPattern Making Machine Supplier
Jinan Lingdiao Machinery Equipment Co.,Ltd is located in the Jinan ,Shandong,China. As a global supplier in the cnc machine, our company is famous around all over the world with LD Brand,LD Company is to create added value for customers around the world.
lso has become one of the leading suppliers in the cnc machine industry in world.The Products mainly as follows:
Marble&stone cnc router machine,wood cnc router machine,advertisement cnc router machine,ATC cnc router machine,plasma metal cutting machine,co2 laser engraving&cutting machine,fiber laser marking machine,fiber metal cutting machine etc.
Why Choose us
Support Customization
Owns more than 500 square meters of researching and office space, more than 5000 square meters factory, and supply OEM service for more than 30 manufactures.
Our Certificates
All machines passed the European CE authentication, American FDA certificate and are certified to ISO 9001.
Broad Market
We have customers from both domestic market and oversea market. Our main sales market: North America 20.00% , Mid East 18% ,Eastern Europe 12.00% , Western Europe 10% , South America 10% , Africa 6% ,Southeast Asia 4% , Eastern Asia 5% .
Types of Mold/Pattern Making Machine
The mold/pattern making machine produced by our company mainly include the following types:

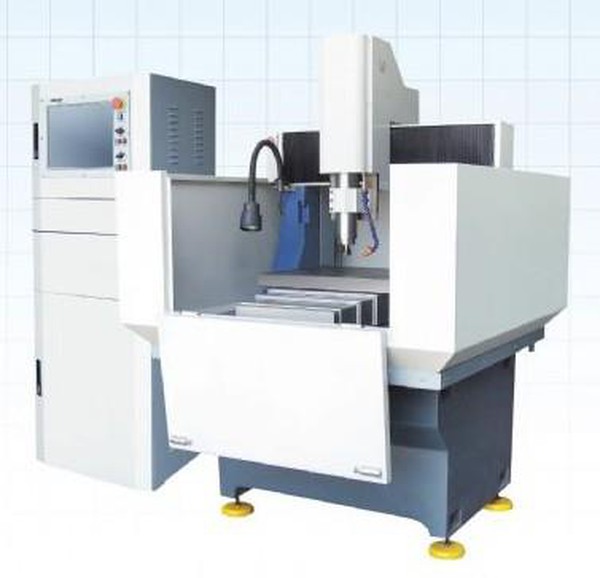

Copper Metal Cnc Engraving Machine
Our metal mold engraving cnc router ,whole machine cast by iron,very strong,table moving,high precision. The metal mold cnc machine imported Hiwin square rail and TBI ball screw for 3 axis.
Cnc Metal Cutting And Engraving Machine
Product Details： 1.The machine body structure adopt cast iron, the rigidity is good, not easy to be deformed, to make sure the machine’s stability. 2.Well compatibility: compatible for software CAD/CAM, such as type3/artcam/JDPaint, etc. 3.Heavy loading, non-deformation, adopting imported double.
LD-6060 Economic Metal Mold Engraving Machine
LD-Economic metal mold engraving machine is mainly for brass/aluminum/copper/stainless steel and other metal sheet engraving and milling work.
Small Metal Engraving Machine
LD-High Level Metal Mould Engraving machine is mainly for aluminum.brass.copper,stainless steel,carbon steel etc. metal sheet engraving work.
6060 High Speed Metal Coin Mould CNC Router Engraving Machine
Our 6060 High Speed Metal Coin Mould CNC Router Engraving Machine is equipped with powerful and easy to learn control system, and adopts mechatronics advanced advanced design concept, which has the advantages of smooth processing, flexible, strong rigidity and high precision processing.
Specification
|
Traveling size |
X Working Area |
400mm/600mm |
|
Y Working Area |
400mm/600mm |
|
|
Z Working Area |
200mm |
|
|
Accuracy |
Working Accuracy |
±0.01mm |
|
Repositioning Resolution |
±0.01 mm |
|
|
Table |
Surface |
PVC |
|
Transmission |
X/Y Axis |
Taiwan HIWIN square guide |
|
Z Axis |
TBI Ball screw |
|
|
Structure |
Lathe Structure |
Integral cast iron |
|
Speed |
Rapid Travel Rate |
15000mm/min |
|
Working Speed |
8000mm/min |
|
|
Spindle
|
Spindle Power |
2.2KW/3.0kw |
|
Spindle Speed |
0-24000rpm |
|
|
Inverter |
3.7KW |
|
|
Working
|
Drive motor |
JAPAN YASKAWA Servo motor/ Stepper motor |
|
Command Language |
G code(optional:HPGL) |
|
|
Others |
Working Voltage |
AC220/50HZ |
|
Operating System |
Original NC studio with handwheel |
|
|
Compatible Software |
Type3(optional:Artcam,Ucancam) |
|
|
Weight |
Gross weight |
650kg |
|
Net weight |
500kg |
Benefits of Mold/Pattern Making Machine
LD-6060 Economic Metal Mold Engraving Machine
LD-6060 economic metal mold engraving machine have many advantages, including:
Heavy duty casting body with high precision.Optimized assembly provides stable structure,good shock absorption,smooth running and high rigidity,assuring high precision last all life time;
Adopt imported double ball screw and rectangle guide rail with no-clearance coupling.
Japanese Servo Motor driving system;
0KW spindle and max speed 18,000rpm provide high-power engraving and fine processing with small cutters.
Cnc Metal Cutting And Engraving Machine
CNC metal cutting and engraving machine have many advantages, including:
Precision: CNC metal cutting and engraving machines provide incredibly accurate cuts, ensuring high-quality products with minimal errors.
Speed: These machines can work much faster than manual tools, increasing production efficiency.
Consistency: Once a design is programmed, the machine can produce identical cuts repeatedly with no variation.
Automation: Reduces the need for human intervention, lowering labor costs and minimizing the chance for mistakes.
Standard strong wooden case
Port : QingDao,China
Lead Time : Within 15 working days
After-Sales Service
Certificate
FAQ
We're one of the professional mold/pattern making machine manufacturers and suppliers in China. Please feel free to contact our factory to get quality mold/pattern making machine for sale or check price with us.
