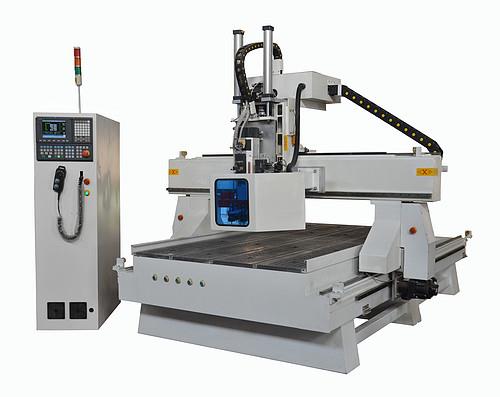

LD-1325 Disc Tool Change Wood CNC Router

This atc cnc machine is very suitable for processing MDF paint door, solid wood door, bedside cabinet, solid wood furniture, mahogany furniture, and widely used for process wooden craft, mural art of wood, musical instruments, etc.

Send Inquiry

Description

Technical Parameters

Disc Tool Change Wood CNC Router:

Introduction of Disc Tool Change CNC Router:

Disc Tool Change CNC Router Application Industry:

1) Mould: wood,wax, wood, gypsum,foams,wax

2) Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and
windows.

3) The wood products: voice box, game cabinets, computer tables, sewing machines table,
instruments.
4) Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling
tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
5) Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.

Parameter of Disc Tool Change Wood CNC Router:

Description	Parameters
Product	LD-1325 Round ATC Wood CNC Router 1325
X, Y, Z axis working area	13002500300mm
Whole structure	Welded Steel gantry structure
Table surface	Vacuum table in zones
X, Y, Z structure	Taiwan HIWIN Square linear guide rail
X, Y structure	Rack and pinion transmission, high speed and more stable
Z structure	Imported ball screw, high precision
Repositioning Accuracy	±0.05mm
X Y Z working Accuracy	< 0.02mm
Spindle	9kw imported HSD Italy air-cooling spindle (option: HQD air-cooling spindle)
Tool magazine	ATC system, with 8pcs tool magazine
Driving system	Servo motor and driver
Operating system	Taiwan SYNTEC control system
Software	UcancamV8 / Type3 / Artcam software (option)
