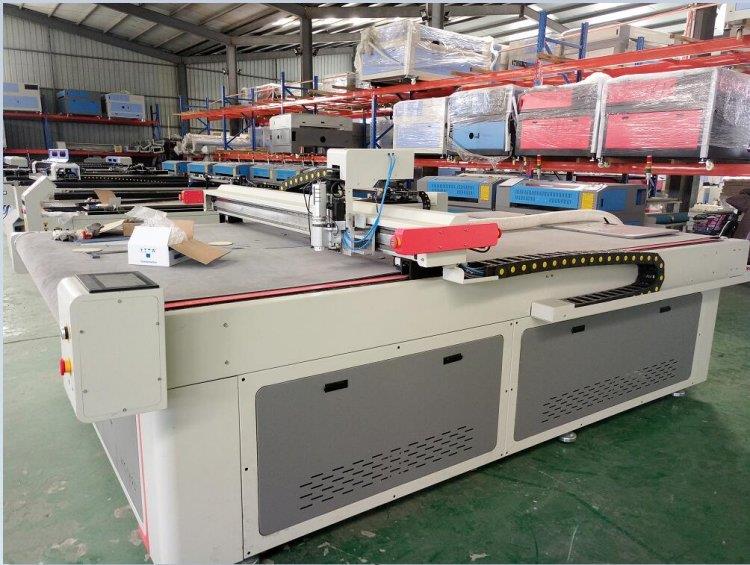

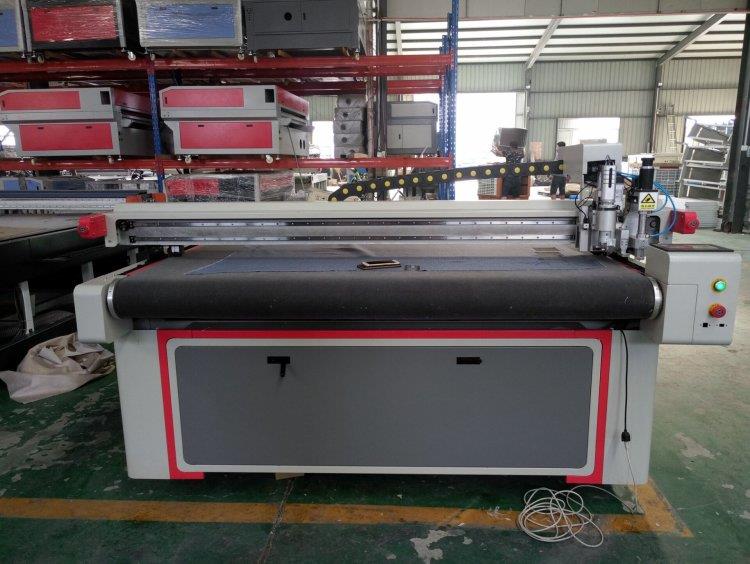

1625 CNC Vibrating Knife Cutting Machine for Leather
CNC Vibrating Knife Cutting Machine Features
1) The platform detection device regulates the knife pressure automatically, enabling a level platform and perfect cutting.
2) The high precision CNC oscillating knife leather cutting machine can induce draft separately and easily cuts small pieces.
3) The anti-collision and the built-in auto-sensing devices ensure the security cnc oscillating knife leather cutting machine.
4) High efficiency can be realized without making a high-cost knife model.
5) The high precision CNC oscillating knife leather cutting machine is designed for production with small quantities and can save on costs while maintaining speed and accuracy.
Technical Parameter
| Model | LD-1625 |
| Max. Cutting size | 1600*2500mm |
| Multi-functional Tool Head | Thorough cutting/Kiss cutting/Creasing/Plotting/Lasor Locating/Automatic Table-level measuring |
| Security configuration | High sensitive infrared induction (optional) |
| Travelling speed | Max. 1200mm/s |
| Cutting speed | Max. 800mm/s (Depending on different material type) |
| Movement speed | 1200mm/s Maximum 1200mm/s |
| Cutting material | Corrugated paper, PVC expansion sheet, kt sheet, thick foam, grey board, paperboard, car sticker, adhesive Sticker, etc. |
| Cutting thickness | Maximum 50mm (set according to different materials) |
| Material fixing method | High power vacuum absorption and intellectual partition |
| Repeated positioning accuracy | Maximum 0.1mm |
| Mechanical Precision | Maximum 0.1mm |
| Drive system | Steel wire synchronous belt , AC servo motor, linear guideway |
| Control system | digit RISC core cpu + large scale programmable logic array |
| Operating mode | operation platform + data output control software (operation platform can be divided into connected and separated parts) |

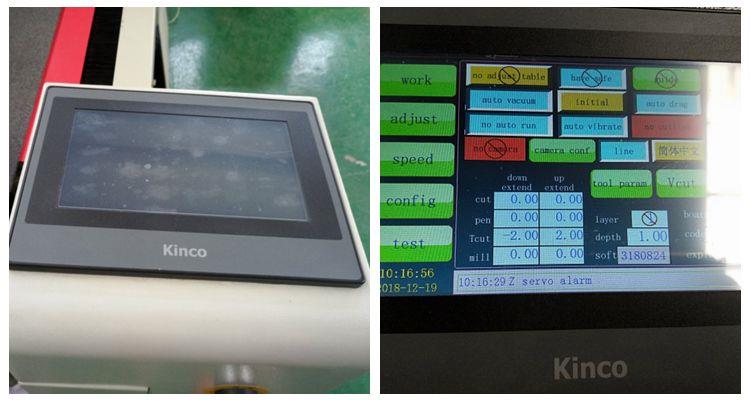

| Display mode | Chinese and English liquid crystal touch screen |
| Data transmission method | Ethernet |
| Instruction system | HPGL compatible format |
| Buffer capacity | Standard 4GB |
CNC Vibrating Knife Cutting Machine Application
*Cutting function of oscillation tool:can cut many different materials (such as corrugated paper, cardboard, offset paper, grey board, rubber,honeycomb board, PP,PE,PVC, gasket, leather ,carpet and mat )
*Folding function: It can fold corrugated paper, card paper and offset board into perfect folding line.
*Function of dotted line: It is used to fold them after half cutting corrugated paper and grey card paper, and to cut dotted line.
*Positioning: positioning with cross red line positioning system.
*Drawing function with marker pen (optional)
It can draw various high precision drawing cutting materials: corrugated board, foam, PVC, styrene, Coroplast, Celtec, magnetic film, adhesive vinyl, leather, rubber, fabrics, high intensity reflective films, paper, cardboard, polystyrene, magnetic films, vinyl etc.
*Punching function: It can punch hole on the material, such as leather,carton, pvc, carpet and mat ,etc.(optional)

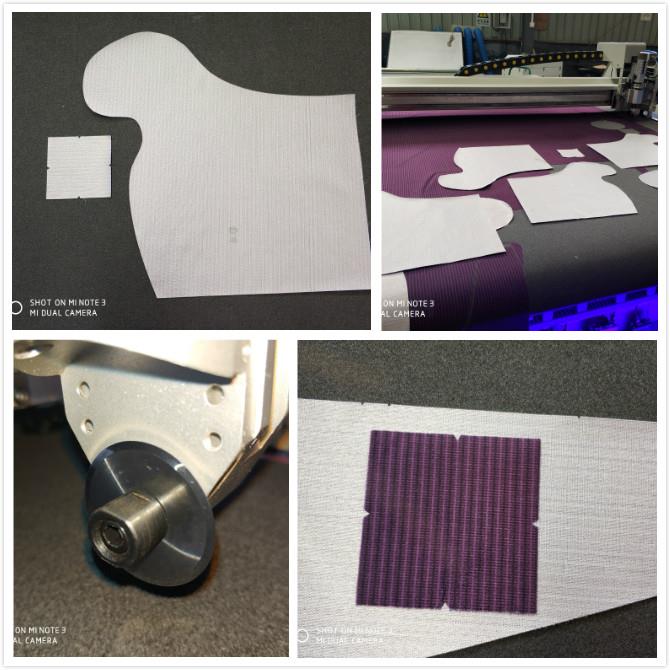

CNC Vibrating Knife Cutting Machine Sample
1. Machine User Manual/Operation Video will be send with machine together.
2. Machine spare parts can be freely change within warranty.
3. Machine operation and other problem can be solved by Skype, Whatsapp face to face video.
4. 24 Hours Online Service Team with professional technology
5. If necessary,can arrange for engineers to provide after sales service.
Packaging & Shipping

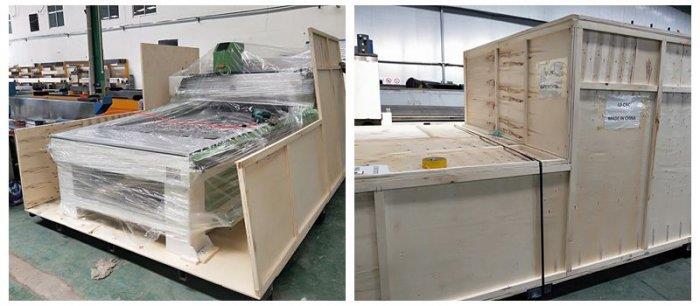

1. We will send the machine with strong plywood package to your port or door address by sea or by airplane. Please kindly tell us your near port or address with postcode.
2. We have reliable shipping agent to insure the safe,convenient and timely delivery.
3. Its need about 25-30 working days to produce the machine after get your deposit. All things are tested well, then we arrange the delivery.
