Description

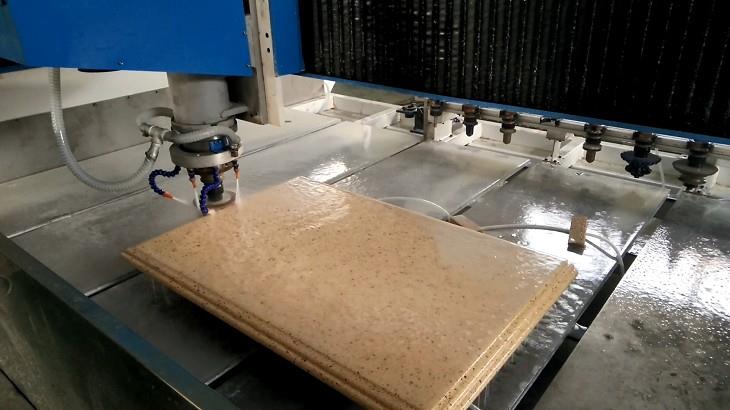

Our granite engraving CNC machine adopts high performance main drive and main shaft parts. It has the advantages of large transmission power, high stiffness, good vibration resistance and small thermal deformation. In order to meet the requirements of CNC technology and give full play to the characteristics of stone carving machine, it is also equipped with cooling, lubrication, transposition parts, on the knife and measuring equipment. And ordinary machine tools.
Features
-Electrical components of this granite engraving CNC machine are imported or domestic brands, lower failure rate, more stable feed.
-High precision chrome plated guide post + wear resistant guide sleeve, waterproof and dustproof.
-The worktable is welded with super heavy and large size profiles, which is more durable than the general worktable.
-Special spray painting process, multi-channel anti-rust and anti-corrosion treatment.
Parameter:
Item Name | granite engraving CNC machine |
X Y Z Axis working area | 3000*1500*400mm |
Table size | 2310*3550mm |
Positioning accuracy | ±0.03/300mm |
Reposition positioning accuracy | ±0.03/300mm |
Machine Frame | 6/8/10mm Steel tube welded structure |
Drive system X,Y axis | 30 Taiwan HIWIN guide rail&pinion |
Drive system Z axis | Ball screw |
Max power consumption | 20-28.0KW |
Max traverse speed | 25000mm/min |
Max working speed | 15000mm/min |
Spindle | KCA1410 Taiwan spindle BT40 |
Spindle speed | 8000rmp |
work mode | Servo motor and driver |
Working voltage | AC380V |
Command language | CAD |
Interface | CF card, Ethernet |
Operating system | Siemens STONE CNC SYSTEM |
X-Y resolution | 0.03/300mm |
Software | Artcam,Type3,UcancamV9 |
