LD-3220 5-Axis bridge saw cutting machine
Application：
The equipment has the advanced functions of arbitrary straight line cutting, specification plate cutting, edge inverting, arc cutting, polygon cutting, special-shaped milling, three-dimensional profiling, drilling, edge grinding and other advanced functions, which is widely used in stone processing plants, kitchen countertop processing, background wall profiling and other fields.
Features:
1.Big Size &Precise Cutting
This series can cut to length 3000mm.
With automatic and high quality rails,the cutting operation is more stable and precise.
2.Multi-function
This series are designed for multi-function purpose.it’s very easy to shift and perform cutting ,chamfering,drilling notching and polishing functions.
3.Automated Control
Well-design automatic system can be shifted freely among manual,automatic and continuous mode.
4.Easy Operation And Quick Assembly
It;s very easy for ne operators to learn how to operate the machine .By using forklift,it’s very easy to move the
machine in warehouse or take it to jobsite.
5.Optional Laser Guide And Rolling Table
Customer can purchase laser guide or another rolling table separately.
Samples：
Technical Parameter:
LD-3220
| Working Size | 3200mmx2000mm x 500mm |
| X/Y/Z Axis Transmission | High Precision Rack Gear+ Screw |
| Spindle Power | 15.8KW Saw Motor |
| Operation System | Syntec 5-Axis |
| Motor | Yaskawa Servo Motor&Driver |
Table Tilting degree(nº) | 0-85° |
Table Rotating degree(nº) | 360° |
Blade Speed | 2800rpm/minute |
Rotating Speed of A Axis | 0-7R/min |
Cutting Speed | 1-2000mm/min |
| Cutting Precision | ±0.2mm |
| Cutting Thickness | 0-100mm |
| Position Accuracy | 0.01mm |
| Working Voltage | AC380V/50Hz |
Water consumption(m3/h) | 4 |
| Packing | Wooden case/Soft package |
| Warranty | 1 year |
Company Introduction

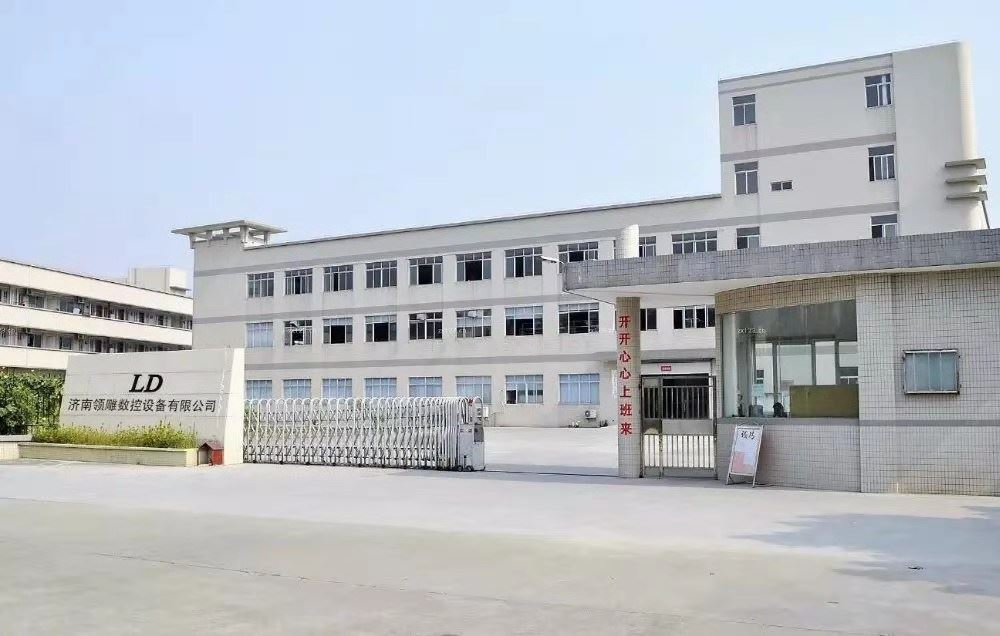

- Jinan Lingdiao Machinery Equipment Co.,Ltd is a famous CNC equipment factory located in Jinan,Shandong,which was found in 2012 ,has more then 8 years machine production experience .
- LD mainly produce marble quartz granite stone processing center, 3-5 Axis bridge saw cutting machines
,Stone engraving CNC Router, Woodworking Machine and metal/foam/wood mould CNC router etc.
- LD has gained CE certificate. Company successfully produce LD series products of more than 50 sorts, which enjoy good reputation and support. Excellent quality and fastservice makes our products spread
all over the world as Europe, America, Middle east, Africa andSouth of Asia.
Our Services & Strength
2. Machine spare parts can be freely change within warranty.
3. Machine operation and other problem can be solved by Skype, Whatsapp face to face video.
4. 24 Hours Online Service Team with professional technology
5. If necessary,can arrange for engineers to provide after sales service.
