Automatic Wood Carving Machine

Jinan Lingdiao Machinery Equipment Co.,Ltd have many kinds of wood cnc machine.It is widely used in furniture, windows, wooden crafts and so on.If you are interested in wood cnc machine,welcome to contact me freely.
Product description

automatic wood carving machine

Machine show:

new design wood working machinewood working machine

    LD New design wood machine                                 LD Standard wood cnc machine

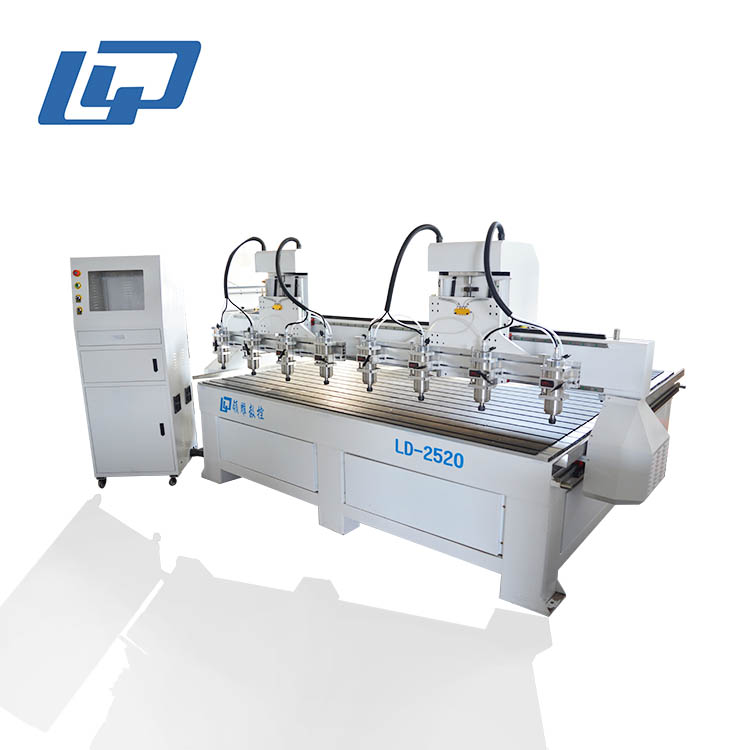

rotary wood cnc machinemulti heads wood working machine

   LD wood cnc machine with rotary axis                      LD multi heads wood cnc machine


Features of LD wood cnc machine:

1. 3/5.5/7.5/9 kw HQD Water cooling ATC spindle, 24000rpm

2. Taiwan SYNTEC 6MB control system

3. Japan Panasonic servo motor and driver, more stable and stonger.

4. 8*position, also can choose 6pcs, 10pcs, 12pcs etc.

5. XY axis transmission is Taiwan HIWIN linear guide with Helical rack, high performance

6. Zaxis transmission is Taiwan TBI Ball Screw with Taiwan HIWIN linear guide, high precision

8. Auto Tool sensor calibration

9. Automatic Oil lubrication system

10. Switch: Japanese OMRON Switch


Parameters od LD wood cnc machine:

Model

LD 1325

X,Y,Z Working Area

1300*2500*200mm effective working area

X,Y,Z Traveling Positioning Accuracy

±0.03/300mm

X,Y,Z Repositioning Accuracy

±0.03mm

Table Surface

Vacuum and  T-slot Combined (Option: T-slot Table)

Frame

Thicken steel Square Tube Heavy structure , 8mm thicken steel

 gantry with T type

X, Y Structure

Gear and rack transmission, Taiwan HIWIN Linear Rail

Z Structure

Taiwan TBI Ball Screw, Taiwan HIWIN Linear Rail

Max. Power Consumption

(Without Spindle)  3KW

Max. Rapid Travel Rate

60000mm/min

Max. Working Speed

25000mm/min

Spindle Power

3kw HQD Water cooling  spindle (China top brand)

Spindle Speed

0-24000RPM

Drive Motors

Japan PANASONIC servo motor and driver



Working Voltage

AC380V/50/60Hz,3PH (Option: 220V)

Command Language

G Code

Operating System

Taiwan SYNTEC 6MB control system



Computer Interface

USB interface

Collet

ISO30

Inverter

Taiwan DELTA / Fuling

Software Compatibility

Type 3 /Artcam /Ucancam


Machine detail of LD wood cnc machine:

wood cnc machine detail parts wood cnc servo motor


Application of wood cnc machine:

1.Wood Furniture Industry: Wave Plate, fine pattern, antique furniture, wooden door, screen, craft sash, composite gates, cupboard doors, interior doors, sofa legs, headboards and so on.

2. Advertising Industry: Advertising identification, sigh making, Acrylic engraving and cutting, crystal word making, blaster molding, and other advertising materials derivatives making.

3. Die Industry: A sculpture of copper, aluminum, iron and other metal molds, as well as artificial marble, sand, plastic sheeting, PVC pipe, wooden planks and other non-metallic mold.


Samples of wood cnc machine:


wood sample


LD company

LD companycompany

teamclient


FAQ:

Q: How to install the machine?

A: After receiving our machine, customers do not need to install it and can use it directly.


Q: How to operate the machine? Is training necessary?

A: The machine is mainly controlled by software. It's very easy, not complicated. Before shipment, we will make a simple operation manual with pictures and provide user manual of software. Generally speaking, an operator, who is not familiar with Machine before, can still operate it very well. According to customers' requests, we can send our technician to customers' plant for machine training or customers can come to our plant for machine training if needed.



Q: In case machine exists problem, how to do after sales service?

A: We provide one year machine warranty. During one-year warranty, in case machine exists problem, we will provide parts required with free of charge by express. But as for the parts damaged by artificially, it does not fall within our warranty list. After the warranty, we still provide lifetime service.



Q: What's package?

A: We have 3 layers package. For the outside, we adopt plywood case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by waterproof plastic bag.



Q: What's delivery time?

A: Generally speaking, lead time is 5-10 working days after receiving the payment.



Welcome to contact:

Name:Ellie Zhu

Mobile/Whatsapp:86 17864160377

Wechat:17864160377
Skype:ldcnc03

Web:www.ldcncmachine.com

    www.ldcncrouter.com
