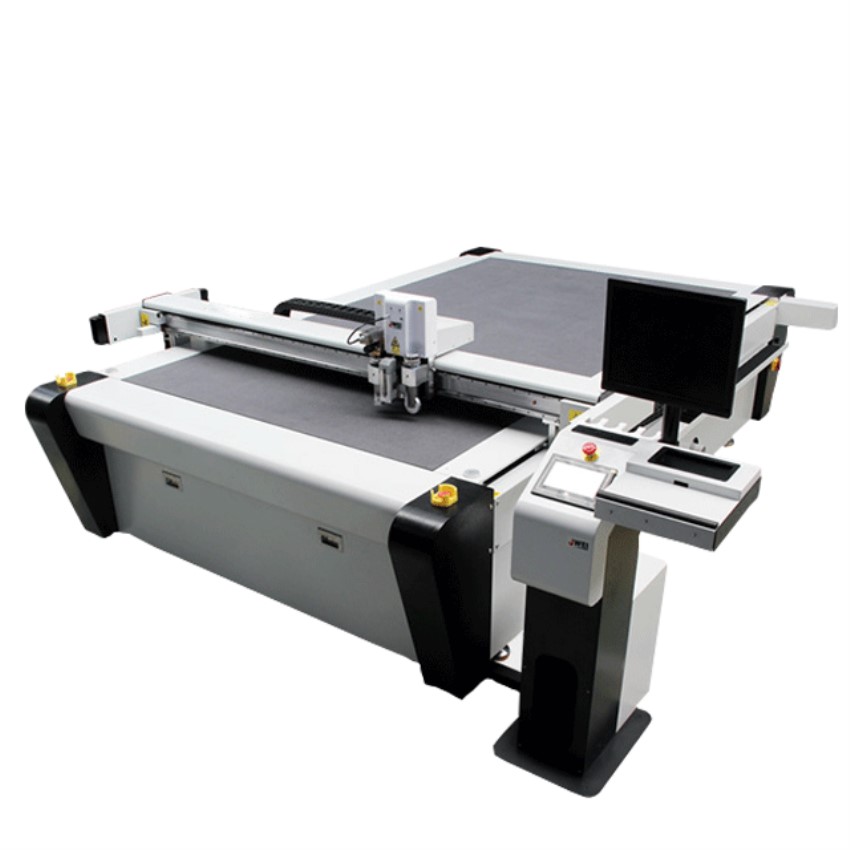

1625 CNC Vibrating Knife Cutting Machine

1625 CNC Vibrating Knife Cutting Machine

Spindle Drill Dead Cut and Engrave: Acrylic, Wood sheet, PVC, ABS Sheet, Aluminum , Brass, Oscillating knife can cut: KT-board, Leather, Fabric, Soundproof material, Sticker, etc.
Product description

Lingdiao 1625 CNC Vibrating Knife Cutting Machine:


Application of 1625 CNC Vibrating Knife Cutting Machine:

There are many solutions to cut clothes,such as knife cutting machine,laser cutting machine,die cutting machine,end cutting machine,multi-layers cutting machine,etc.Among it,the knife cutting method is ideal to keep balance among pollution free,no smelly work environment,boosting production capacity,saving labour cost and cost effective.With steady smooth edge cutting performance,high flexible,high material utility and reasonable price,knife cutting solution free tailors from prototyping and short run production.Knife cutting solution already becomes the popular cutting solution in garment industry.



Parameter of  Lingdiao 1625 CNC Vibrating Knife Cutting Machine:

Model

1325/1625/2030 optional

Working area

1300*2500mm/1600*2500mm/2000*3000mm

Rated power

11KW


Fixed mode

Flate plate table /auto feeding plate optional

Multifunctional heads optonal

Vibration knife

Circular knife

Punching knife

Oblique knife

Pen

Punch roller

Milling knife

Projector and camera optional

Safety device

Using infrared sensors,  responsive, safe and reliable.

Translational velocity

800-1200mm/s

Cutting speed

200-800mm/s(according to different cutting materials)

Cutting thickess

≤22mm(according to different cutting materials)

Cutting material

Leather, all kinds of clothing flexible material, Sponge leather, PVC, soft glass, Silicon, rubber

Repated accuracy

≤0.1mm

Capacity

2GB

Transmission system

imported(Digital servo motor, linear guide,aynchronous belt, ball screw)

Instruction system

HP-GL compatible format

Control system

TC6828(AOL custom made)

Voltage

380V±10%

Other configuration

Germany imported conveyor belt, vacuum table, Taiwan Hiwin rail, vacuum pump

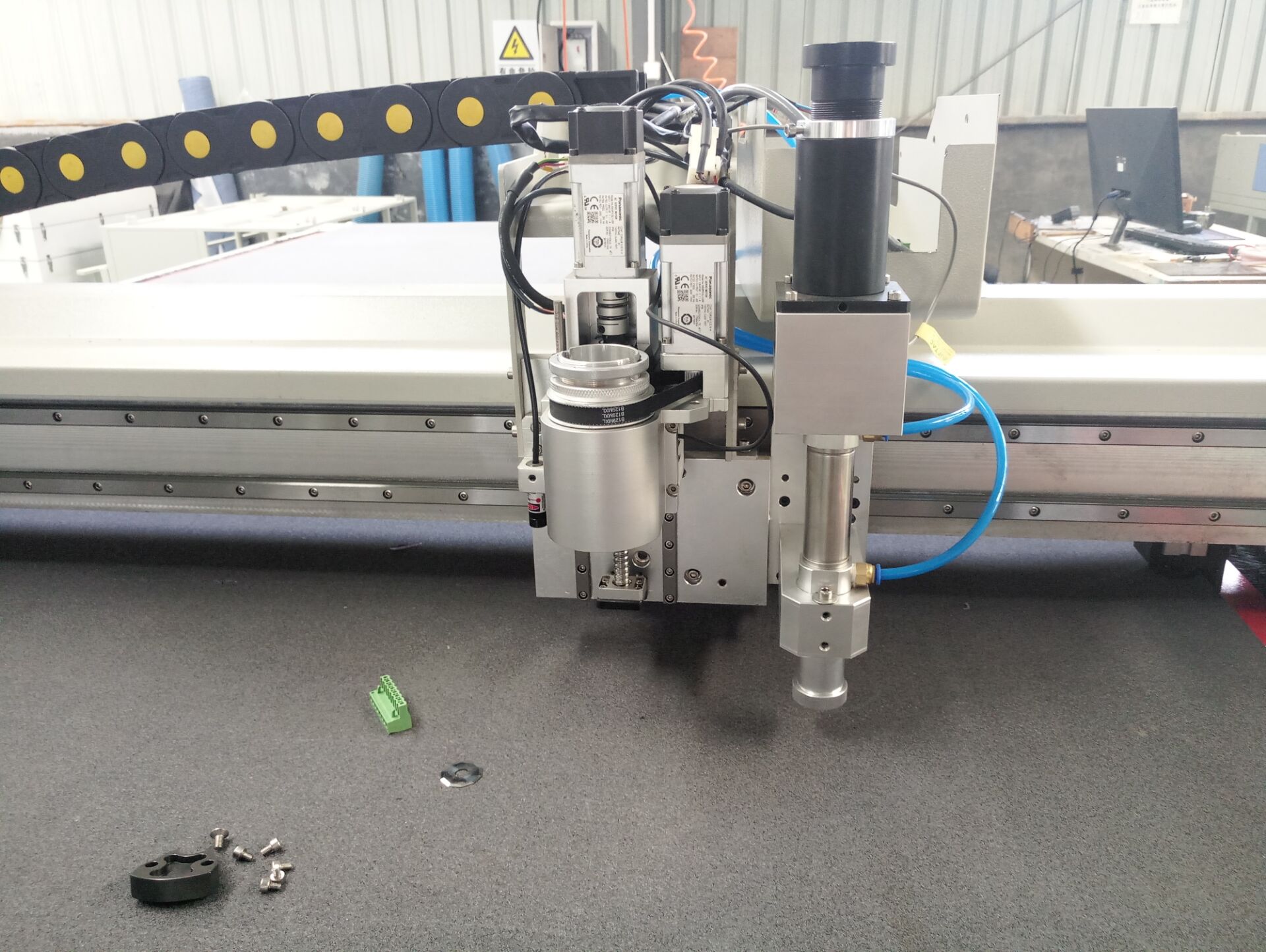

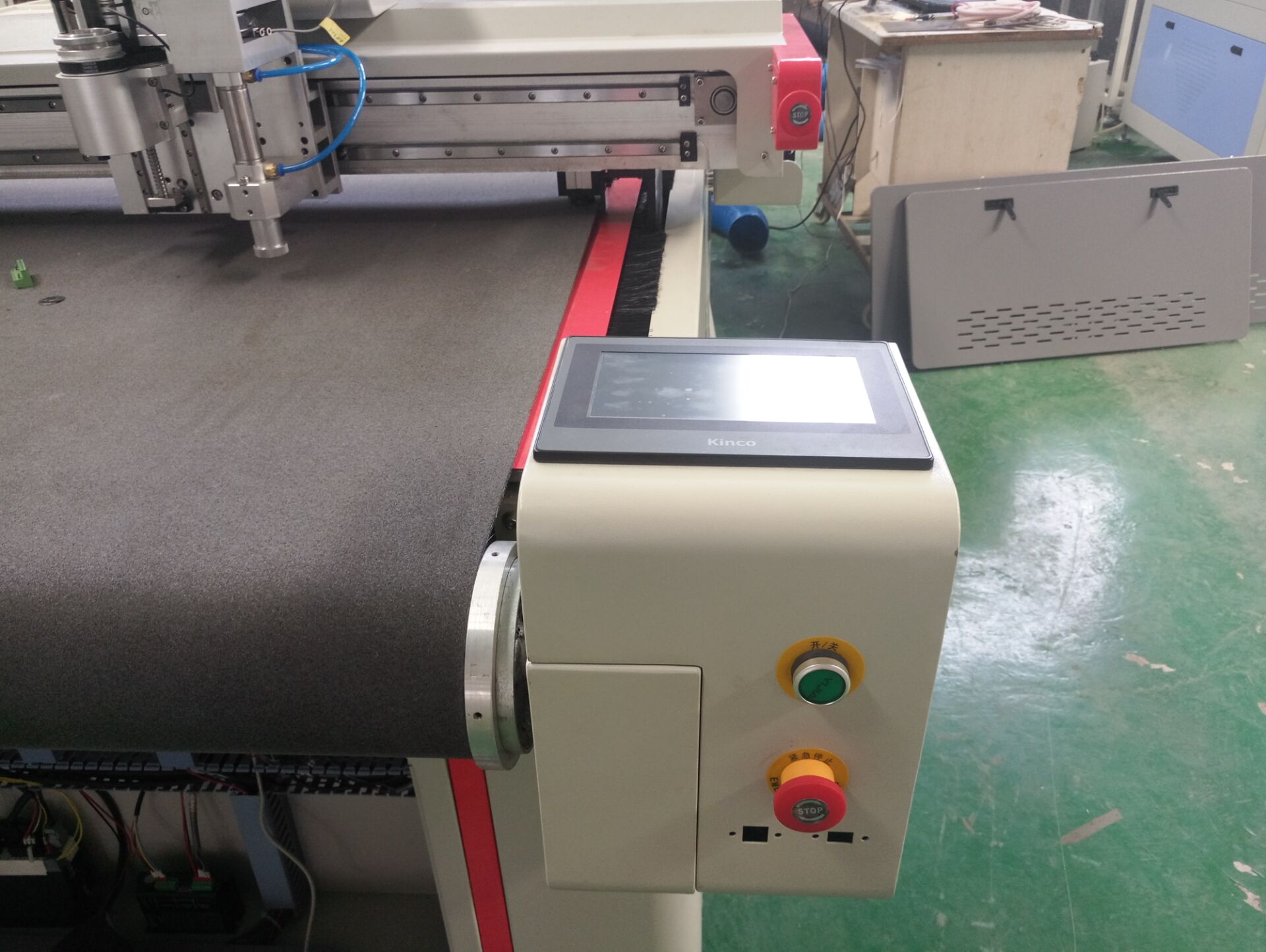

Product parts:

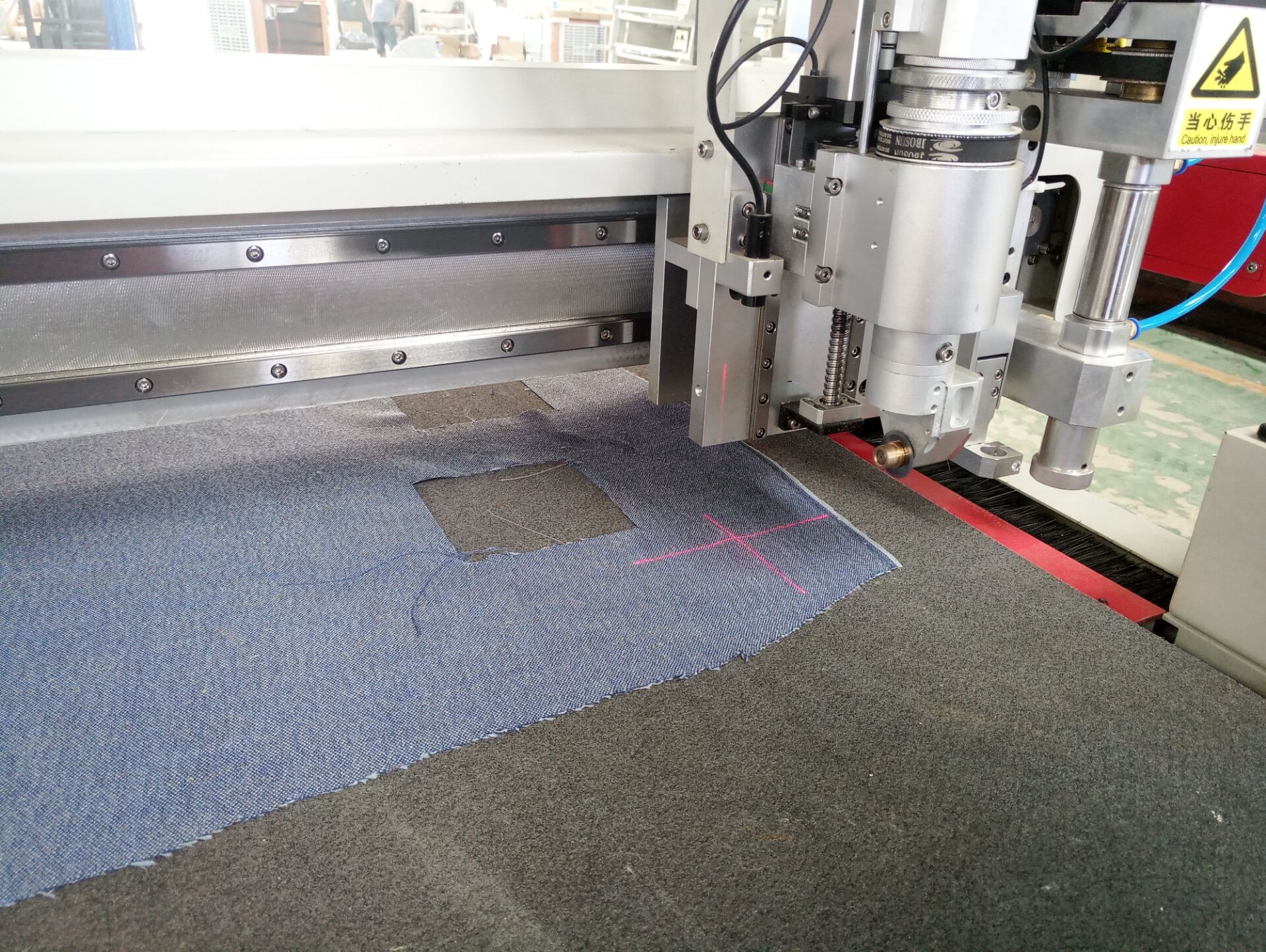

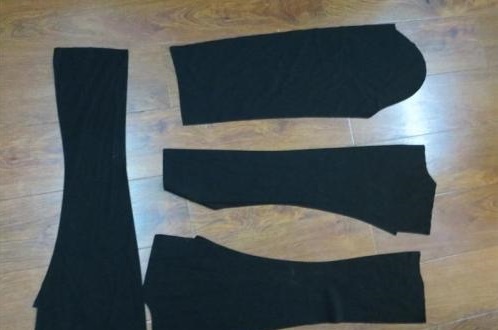

Sample:



Packaging & Shipping:



Welcome to contact us:

Name : Leona Li

WhatsApp/Mobile : +86 17862979699

Wechat : +86 18753689756

Skype :  ldcnc04

E-mail : ldcnc04@ldcncrouter.com


Jinan Lingdiao Machinery Equipment Co.,Ltd

Address:No.8Hongyuan Industrial Park,South of Qinghe Road,Licheng Zone,Jinan,Shandong,China
