Features: 1. Whole machine seamless weld steel structure, good rigidity, sturdy and durable, can bear 1MT weight at least. 2. Three axes adopt imported Taiwan PMI square guide rails, two linear sliding track; Y axis adopts double drivers, big load, good stability, high precision, long lifetime....
Product description

LD Stone cnc router

Features:

1. Whole machine seamless weld steel structure, good rigidity, sturdy and durable, can bear 1MT weight at least.

2. Three axes adopt imported Taiwan PMI square guide rails, two linear sliding track; Y axis adopts double drivers, big load, good stability, high precision, long lifetime.

3. Three-axis all have the waterproof and dustproof system, and automatic oil supplier makes the maintenance operation easily.

4.Independent control cabinet, and CNC Router anti-jamming dedicated shielded wire, senior configuration; 3KW constant power water cooling spindle with the imported bearing, large force, high efficiency.

5.Built-in water tank and automatic double direction cutters cooling system protect the tool effectively while processing all kinds of stone.

6.NC studio control system  show the whole Manufacturing process,  The whole NC control system include one control card install into control box,and one disk,need to install in your PC.Then control the whole machine move (include X axis move left and right,Y axis move back and forth ,Z axis move up and down ).

Application:

Stone material: natural marble, granite, artificial stone, tombstones, stone, jade carving and processing.

Decoration categories: ceramics, crystal, glass, plastic, chemical synthetic organic glass board, PVC board, wood, plastic, metal, plastic materials, such as line carve, 2d, 3d bottom tip carving, 3d relief, cutting, edge, drilling.

Parameter:


Model:LD-2030
X,Y-axis working area1300*2500mm
Body dimensions(with bracket)2900*1750*1400mm
Z-axis working area 200 mm
Max. Feeding height200mm or bigger
Cutting thickness of material≤40mm
Max. travelling speed8000mm/min
Engraving speed0-6000mm/min
Mechanical precision0.01mm
Compatible SoftwareType 3 software , Artcut software , Artcam software
Max. Power consumption3.2KW
Power source220V/380V
Driving systemServo  motor
MemoryWithout or DSP
Spindle5.5KW spindle , water-cooled
Spindle speed0-24000RPM
Blade diameter3.175mm,4mm,6mm
Control systemDSP, USB offline
CommandG code, Uoo, mmg, plt, HPGL
Running ambient temperature0-45°C
Relative humidity30%-75%
Optional itemsRotary axis , vacuum table and dust collector

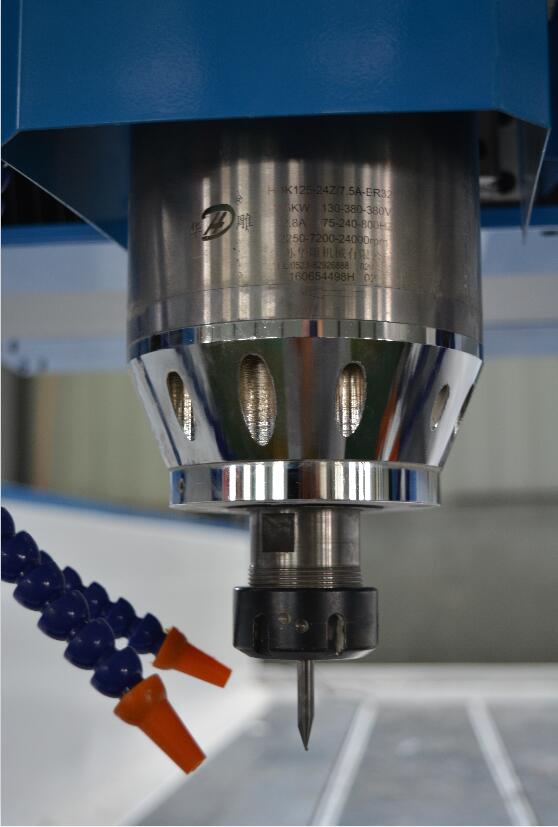

Machine Spare Parts :

Machine Spare Parts

Machine Spare Parts :

Machine Spare Parts :

Machine Spare Parts :

Machine Cutting&Engraving Samples:

Machine Cutting&Engraving Samples:

Machine Cutting&Engraving Samples:

Machine Cutting&Engraving Samples:


 Packaging&Shipping:

 Packaging&Shipping:
